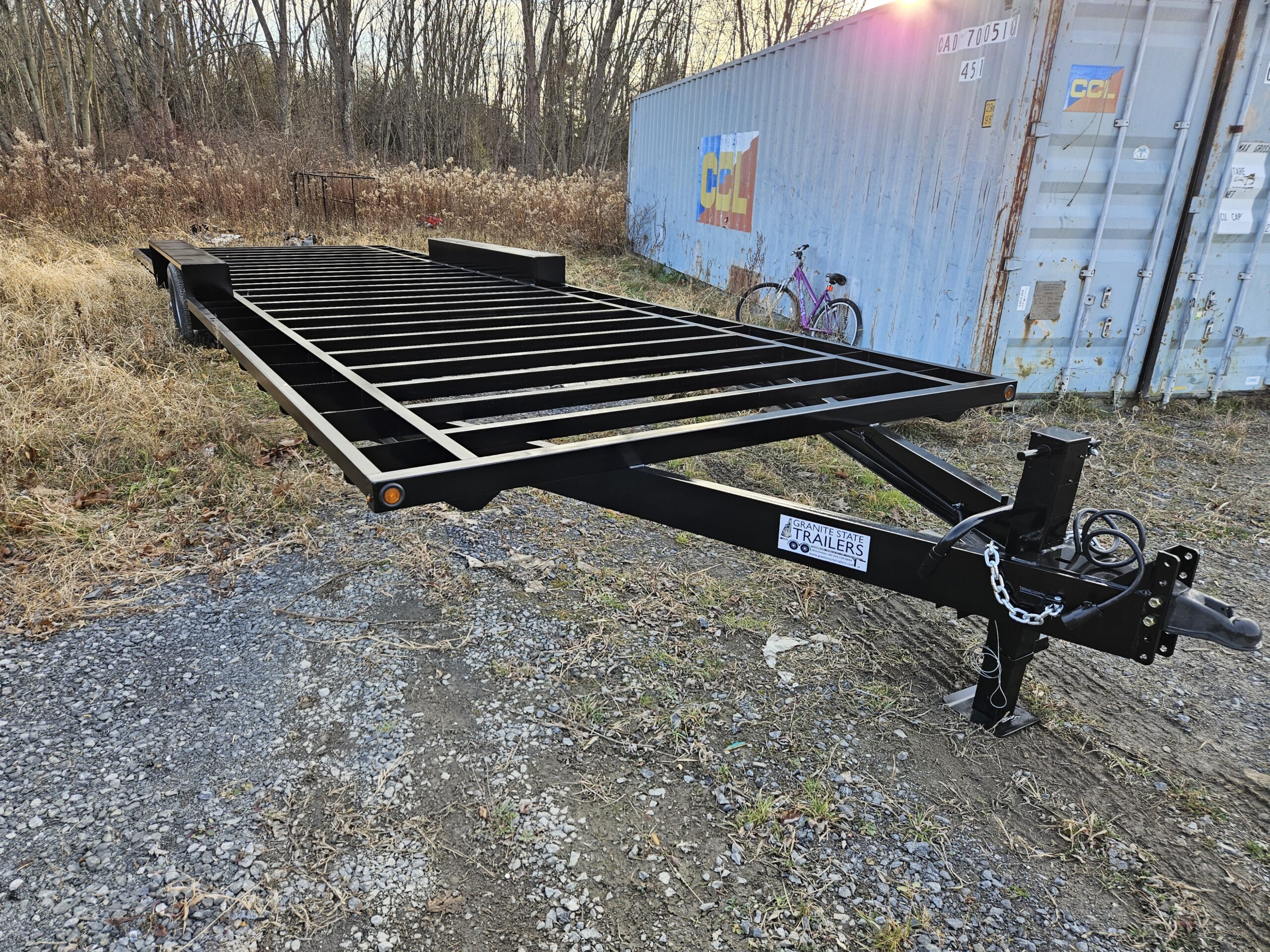

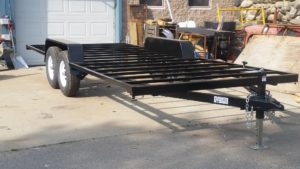

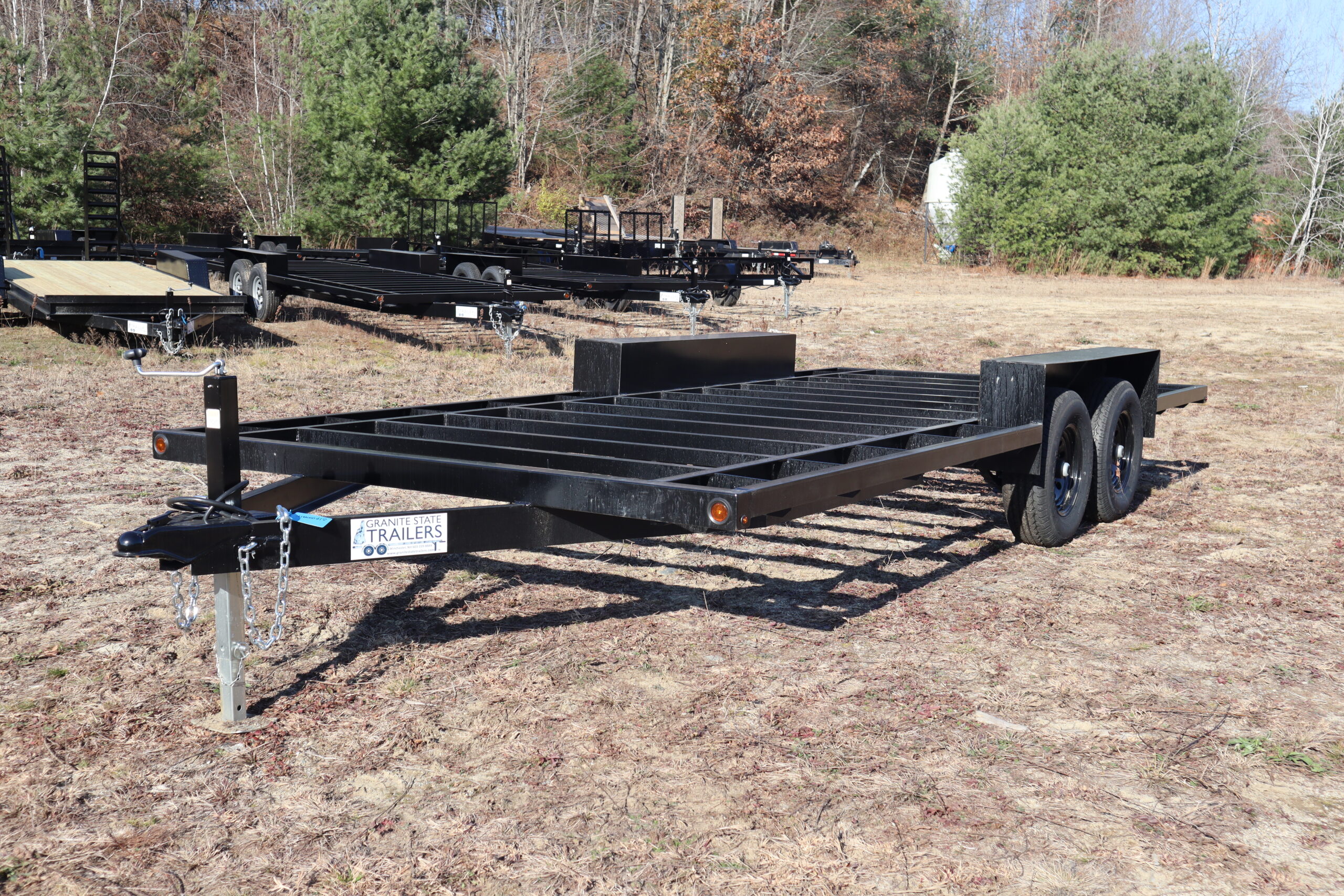

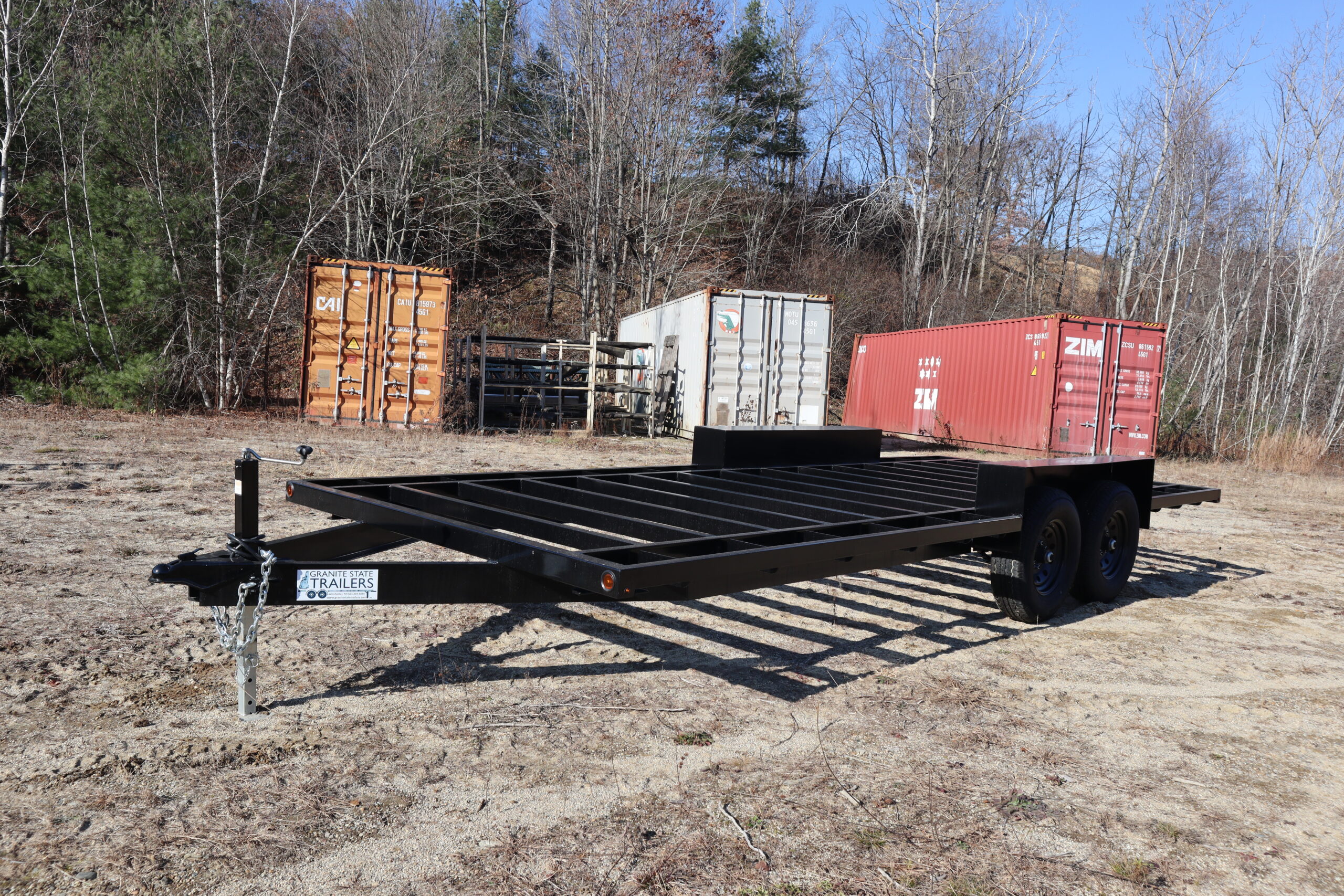

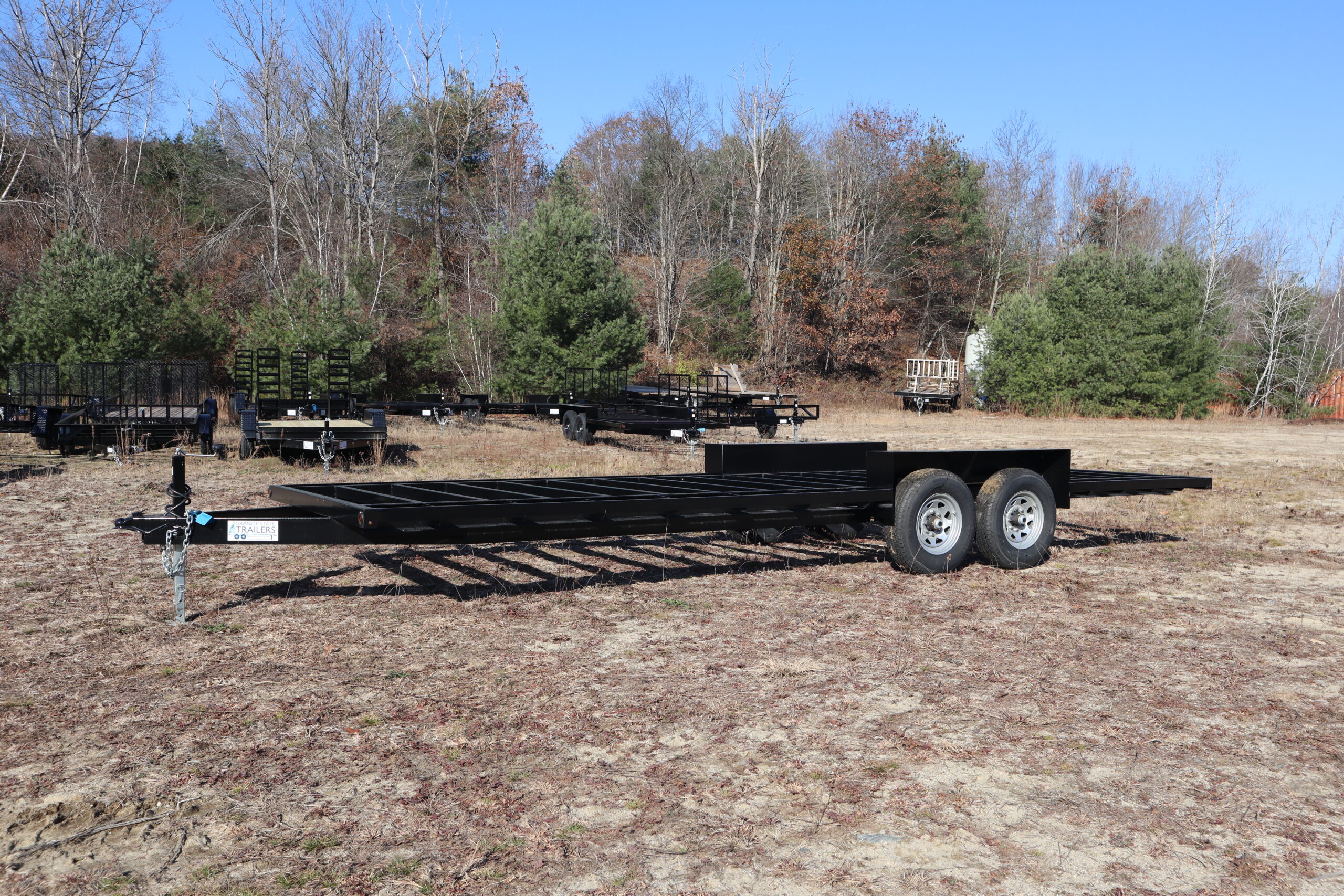

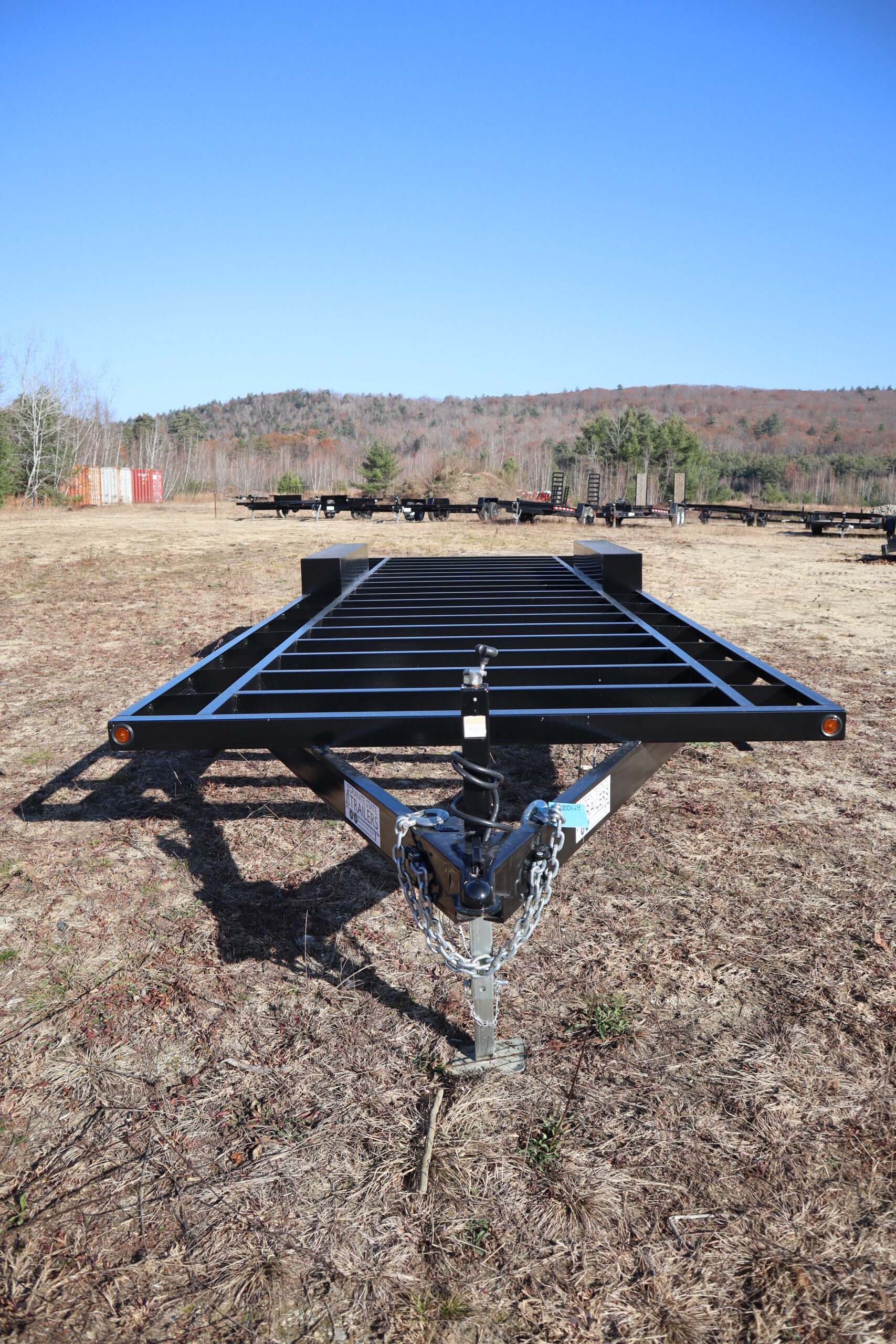

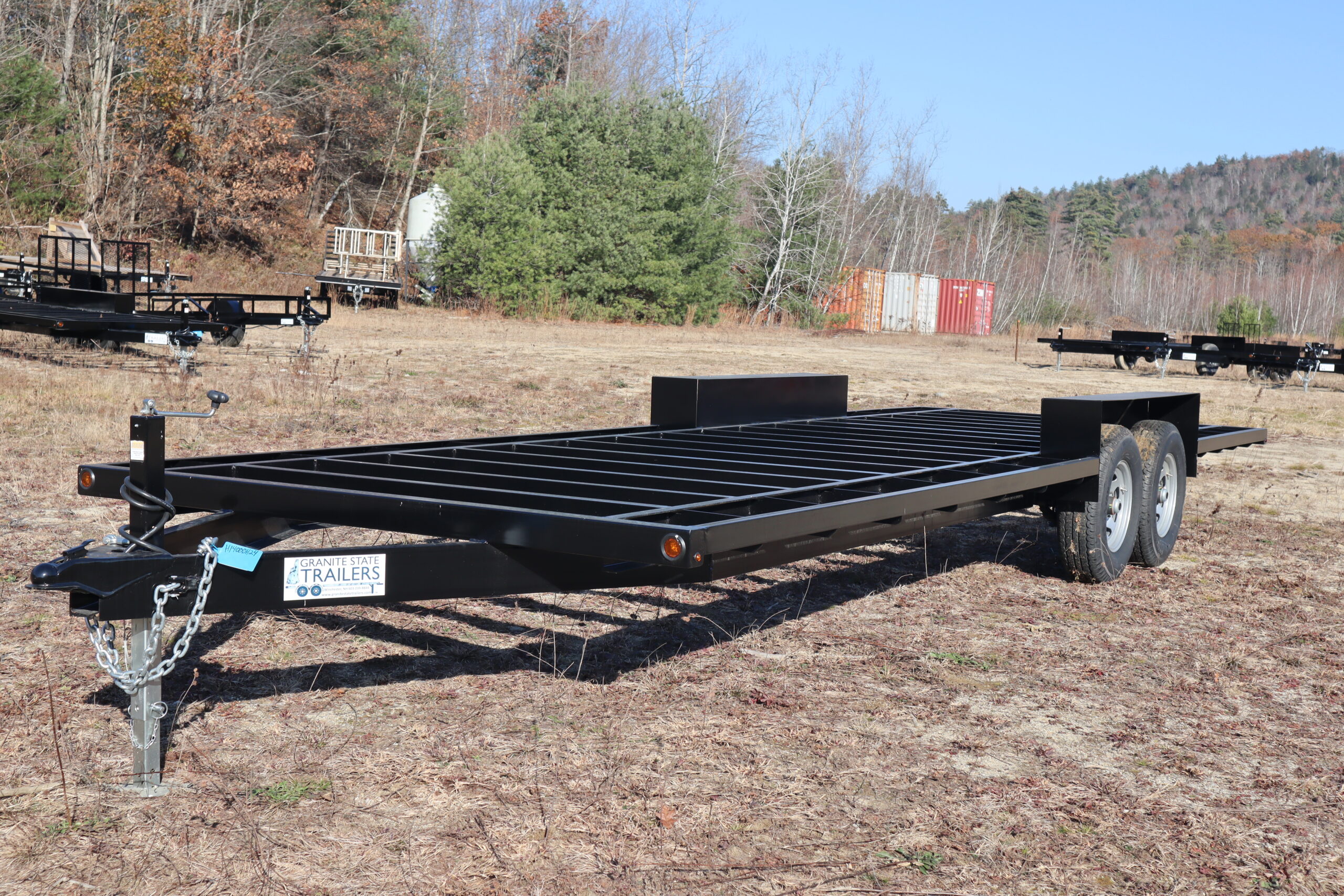

This series is built specifically as a foundation for a tiny house. Designed for ease of building with box-tube construction. Available from 16 to 30 feet long with other lengths built to order and have a 9,990-18,000 GVW rating or higher if needed.
Our standard trailers are 7′ 10-1/2″ wide which allows for your siding to cover the outside edge of our trailer and still allows 3″ roof overhang to remain at DOT max width of 8′ 6″. We also offer wider trailers of 10′ or 12′. We can build you any custom size trailer you need.

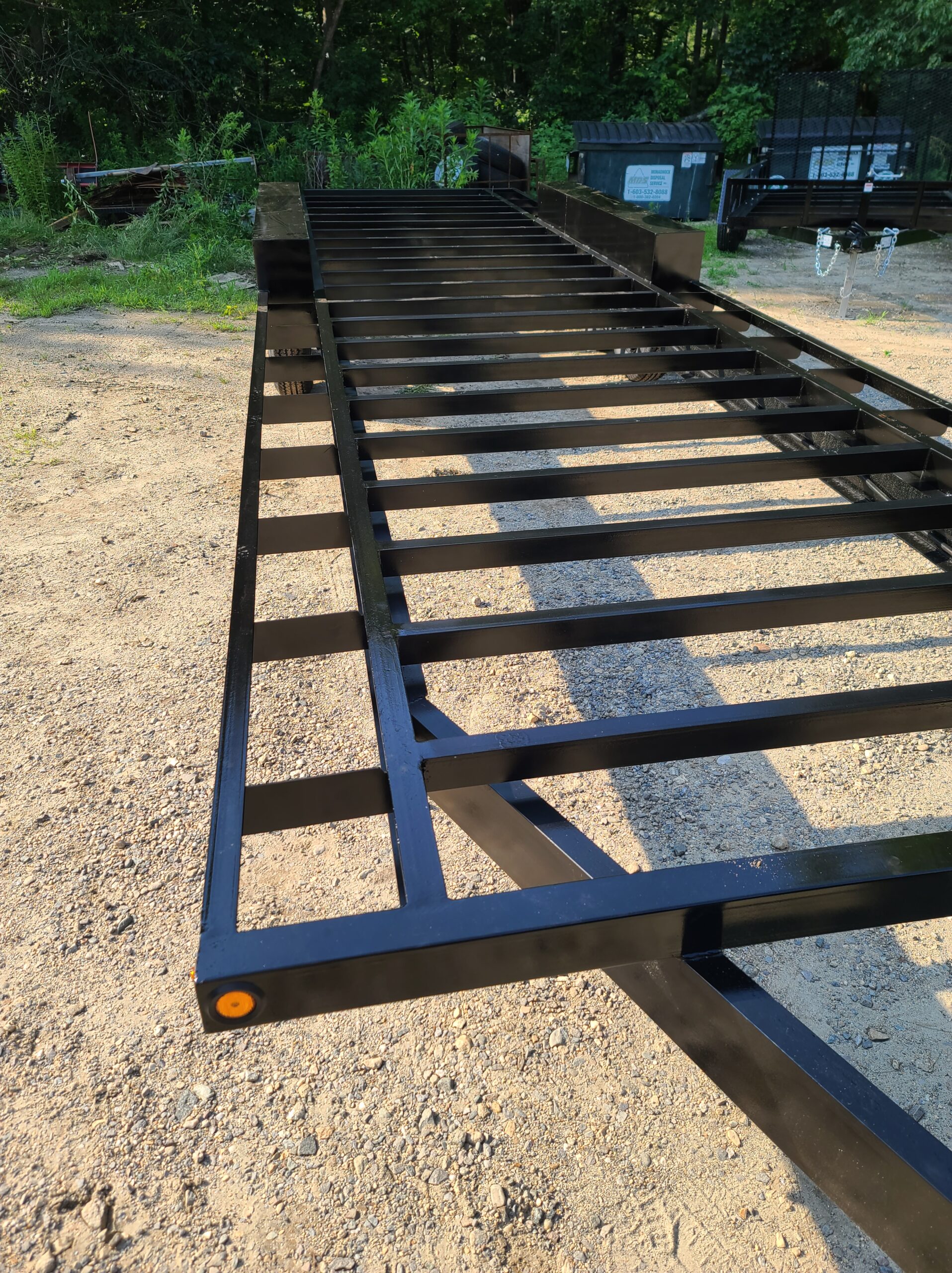

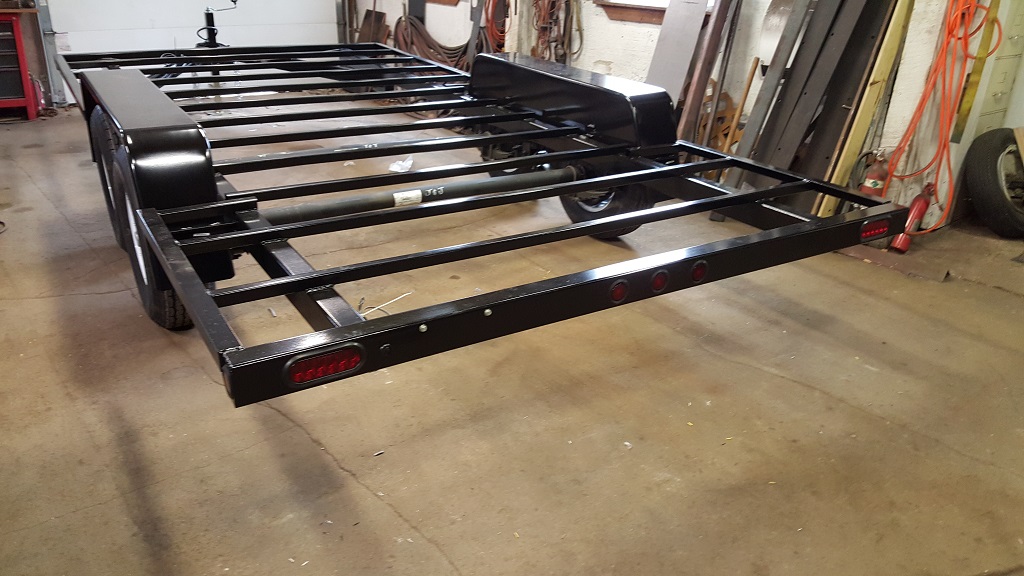

We use 1 1/2″ square tube cross members spaced 16″ on center so you can lay subfloor right to our frame with no floor framing needed.
All trailers are primed and painted.
- DEXTER Sprung Axles
- E-Z Lube Hubs with Grease Caps
- USA MADE Grommet Mounted LED Recessed Lights W/Lifetime Warranty
- All Wiring Harness Run in Conduit

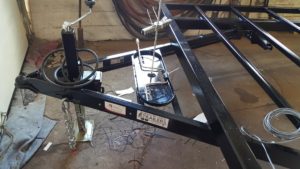

- Jack 5,000 lb. Drop Leg
- 6way RV Front Plug
- Primed and painted black
- All cross members 16″ OC for easy construction

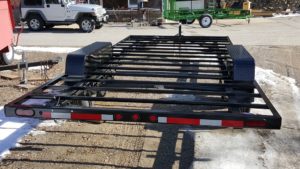

- Wire drops for DOT required high mount lights
- Curb Weight: 1,800 lbs. (H12000B20)
- Bed Width: 7’-10 1/2″ (94.5”)
- Bed Height: 24”
- Overall Width: 8’-5” (101″)

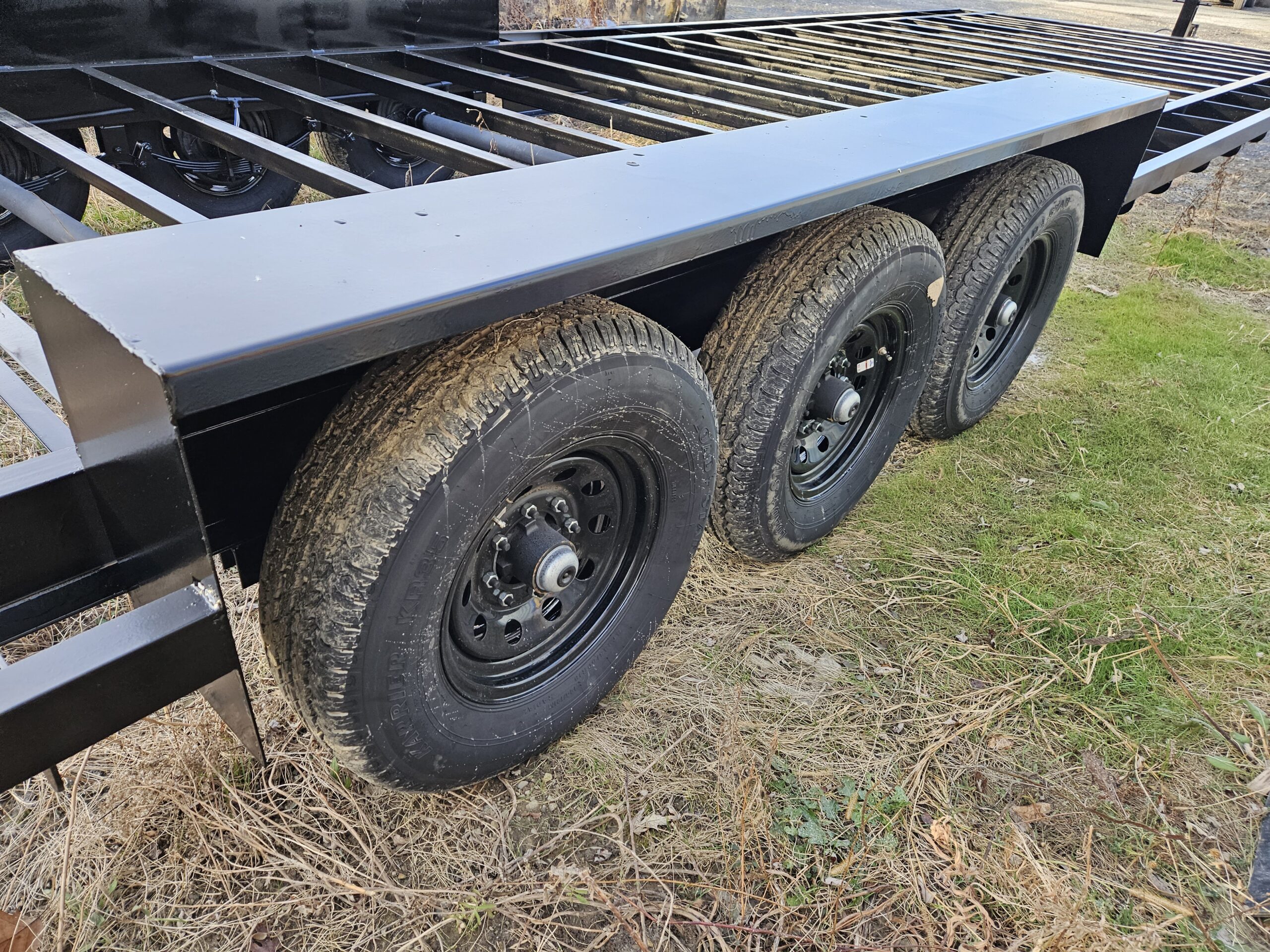

- Axles (Dual): (2) 6,000 lbs. with brakes on both axles
- Tires: ST225/75R15 LR-D ~ ST235/85R16 LR-E
- Wheels: 15”-6 lug or 16”-8lug
| Model Number | Size | GVW |
|---|---|---|
| H10000H16 | 7’10 1/2”x16’ | 9,900 LBS |
| H12000H20 | 7’10 1/2”x20’ | 12,000 LBS |
| H12000H24 | 7’10 1/2”x24’ | 12,000 LBS |

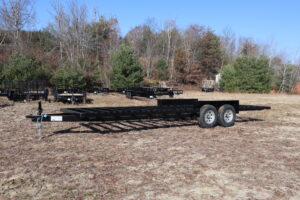

| H14000H24 | 7’10 1/2″x24′ | 14,000 LB |

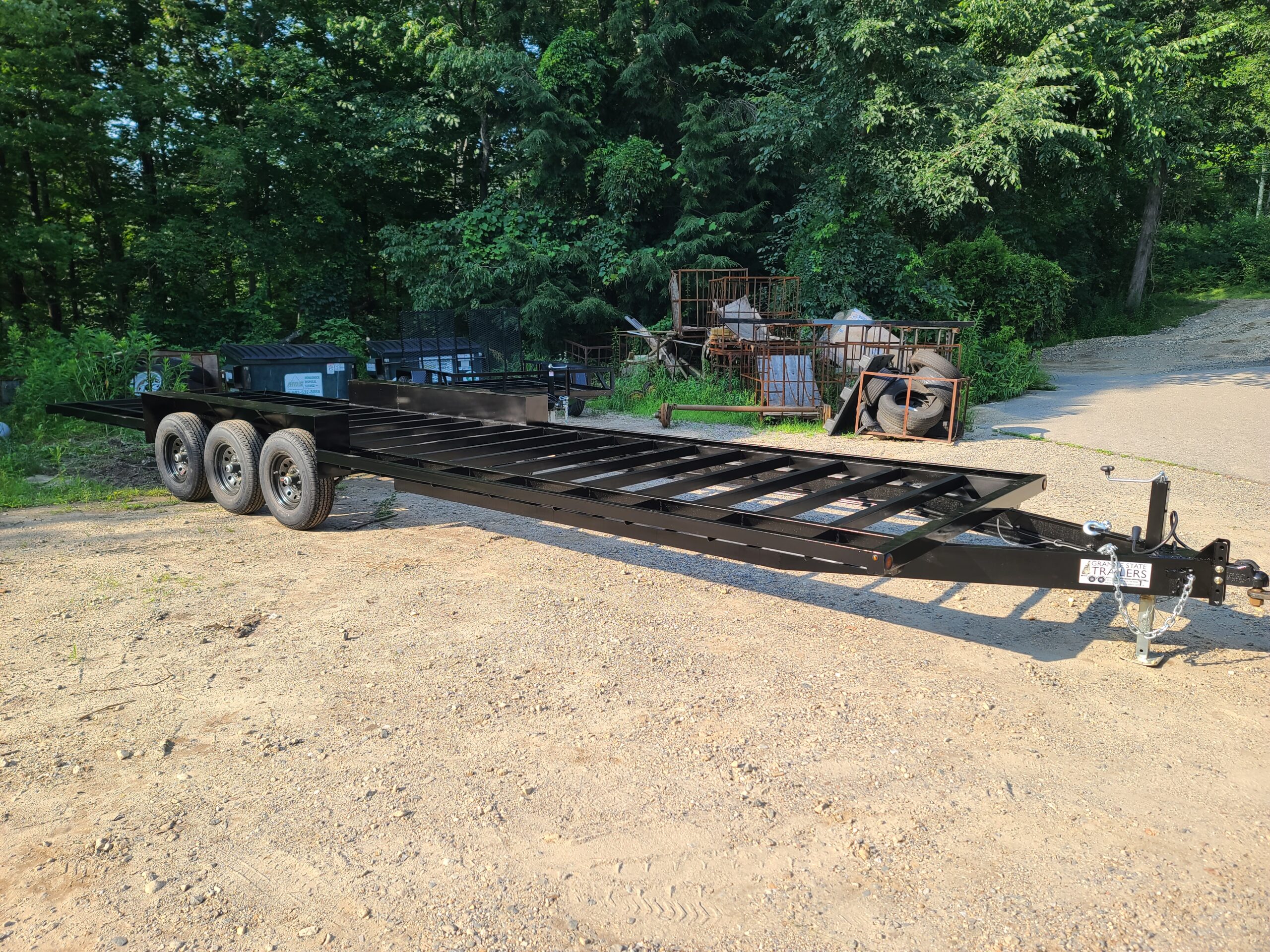

| H18000H30 | 7’10 1/2″ x 30′ | 18,000LBS |
Options
- Dual propane tank holder (holds 20, 30 or 40 lb. bottles)
- Four scissor jacks
