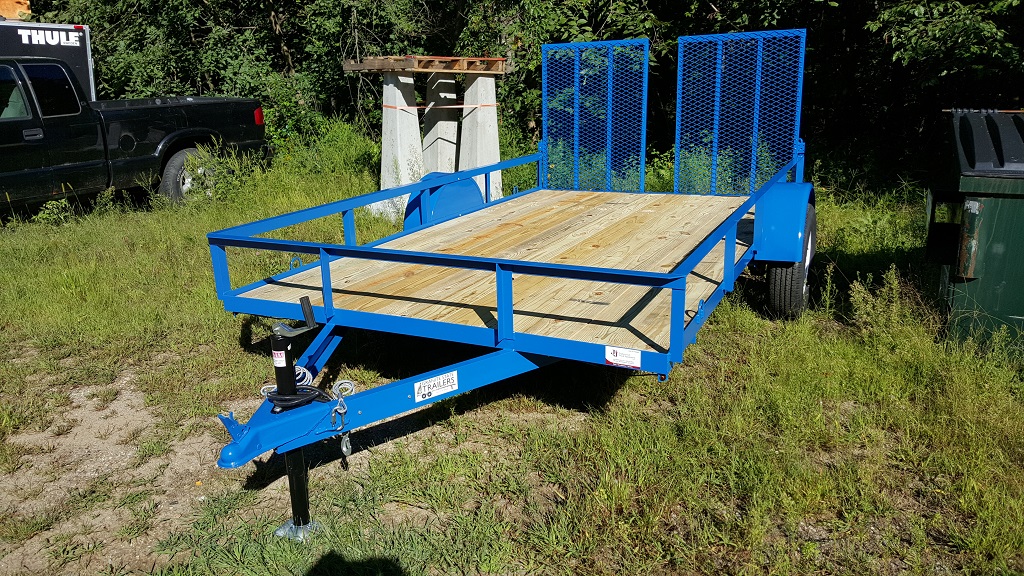

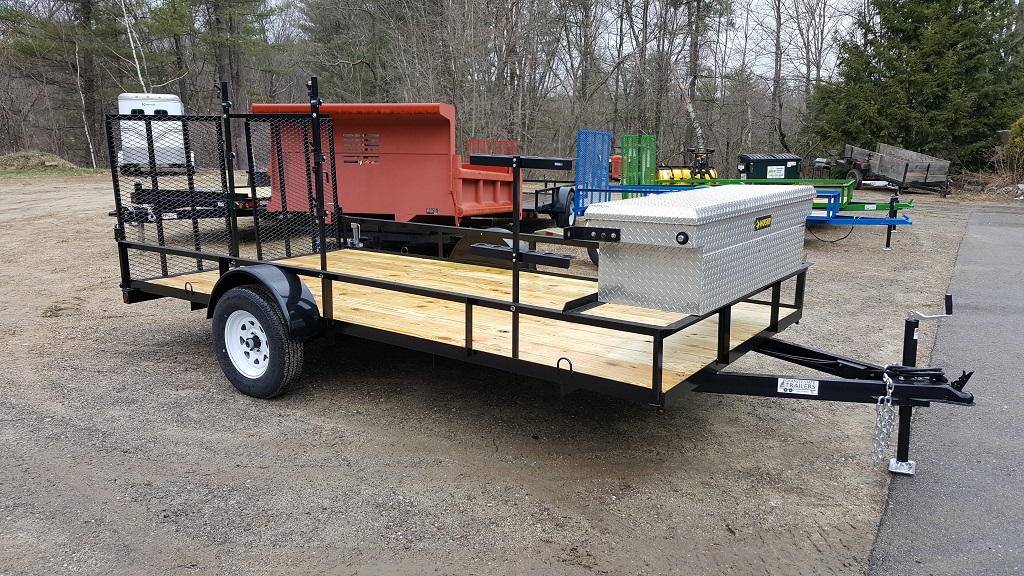

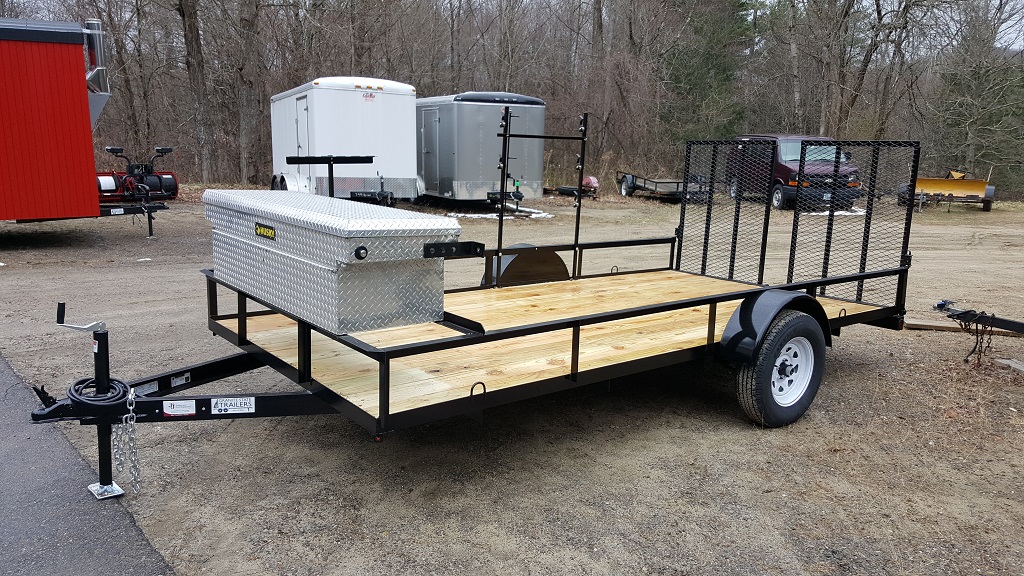

This is our 6‘ 9” wide series, available in 12 and 14 foot lengths. This heavy duty trailer has a stronger frame, and can carry more weight than our garden trailer series with a 2990-5000 GVW tow capacity.
-
- U3000B12 With Standard Gate
- DEXTER Sprung Axles
- E-Z Lube Hubs with Grease Caps
- USA MADE Grommet Mounted LED Recessed Lights W/Lifetime Warranty
- All Wiring Harness Run in Conduit
- “2×8” Pressure Treated Decking
- Jack 3000 lb. A-Frame
- Flat 4 ~6way RV Front Plug
- 4 Colors to Choose from, Red, Blue, Black, Green. Other colors available
- Curb Weight: 975 lbs. (U3000B12)
- Bed Width: 6’-9″ (81”)
- Bed Height: 19”
- Overall Width: 8’-5” (101″)
- Axles (Single): (1) 3,500 lbs. Idler for 2990 GVW, Brake axle for 3500 GVW, 6000Lb Brake for 5000 GVW
- Tires: ST205/75R15 LR-C
- Wheels: White Spoke 15”-5 lug (5 on 4.5)
| Model Number | Size | GVW |
|---|---|---|
| U3000B12 | 6’9”x12’ | 2990 LBS |
| U3500B12 | 6’9”x12’ | 3500 LBS |
| U5000B12 | 6’9”x12’ | 5000 LBS |
| U5000B14 | 6’9”x14’ | 5000 LBS |
Options
- 12” Mesh Sides
- 24” High Sides
- 6’ Standard Split Gate
- Spare Tire
- Heavy Duty Gate
- HD 6’ Gate
- Extra Tie Downs
- XHD Gate W/Drop Leg
