Our off road trailer is built rugged to take the abuse of your off road adventures. With an all tubular frame, we run a 2″ receiver front coupler and even has a 2″ receiver in the rear. The wiring is ran inside the frame with all grommet mounted lights. This can be truly a custom build. This page shows some ideas of what can be done. We start with several axle options, then build to the size you want. We can custom match paint to your tow rig. We have several options for on top and can finish it off with a roof top tent. We offer led lights inside that come on when you open a door. We can even match tires and wheels with your tow vehicle.
-

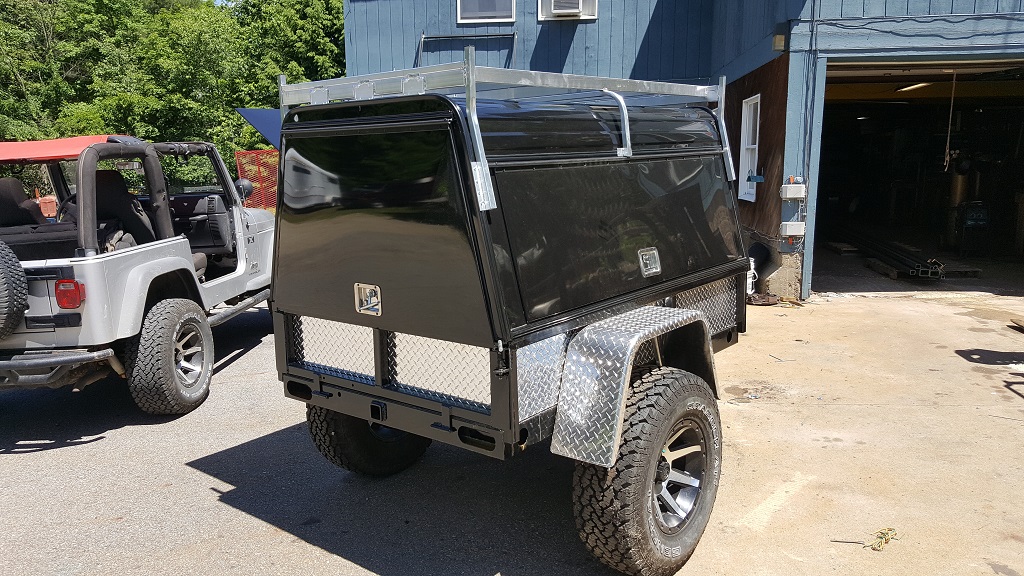

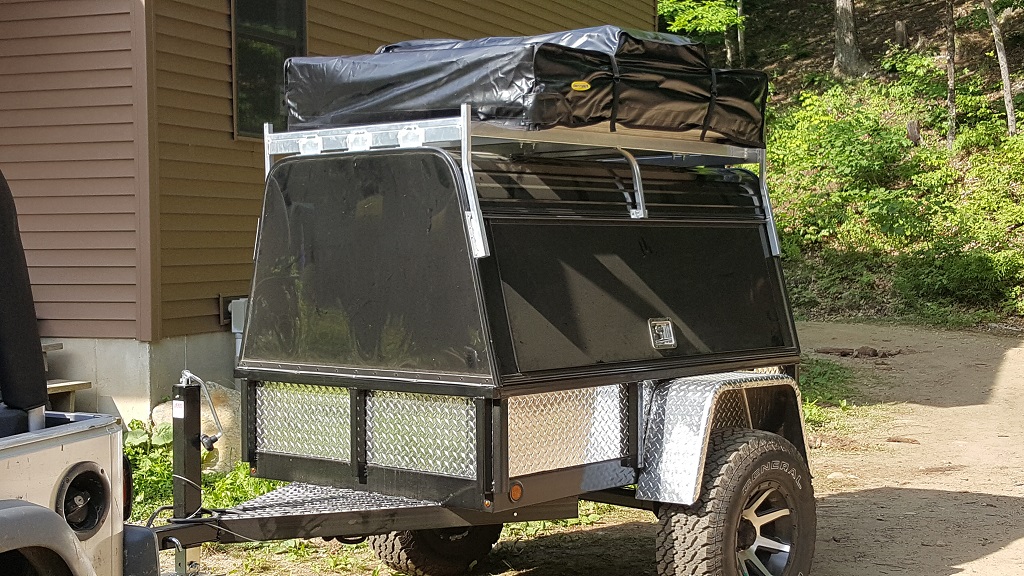

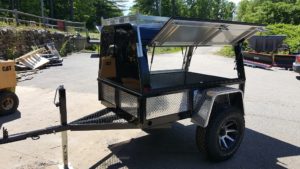

- Shown with Jerako cap with heavy duty racks
-

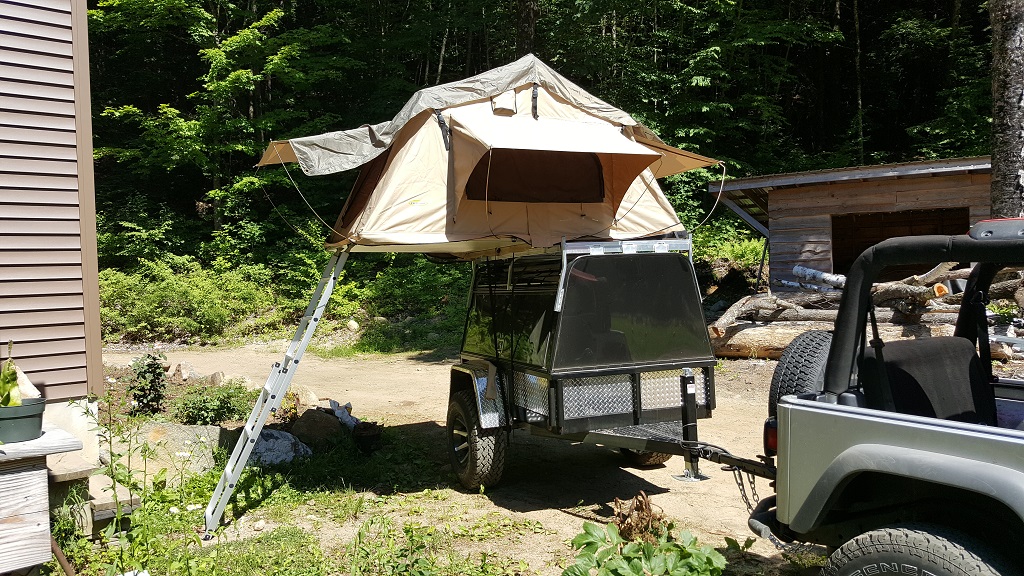

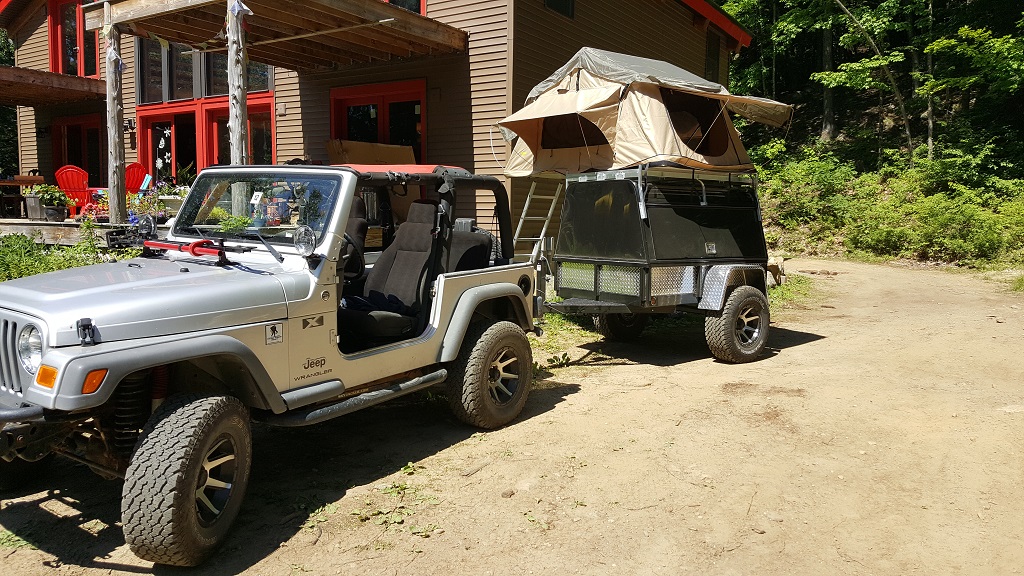

- Roof top tent
-

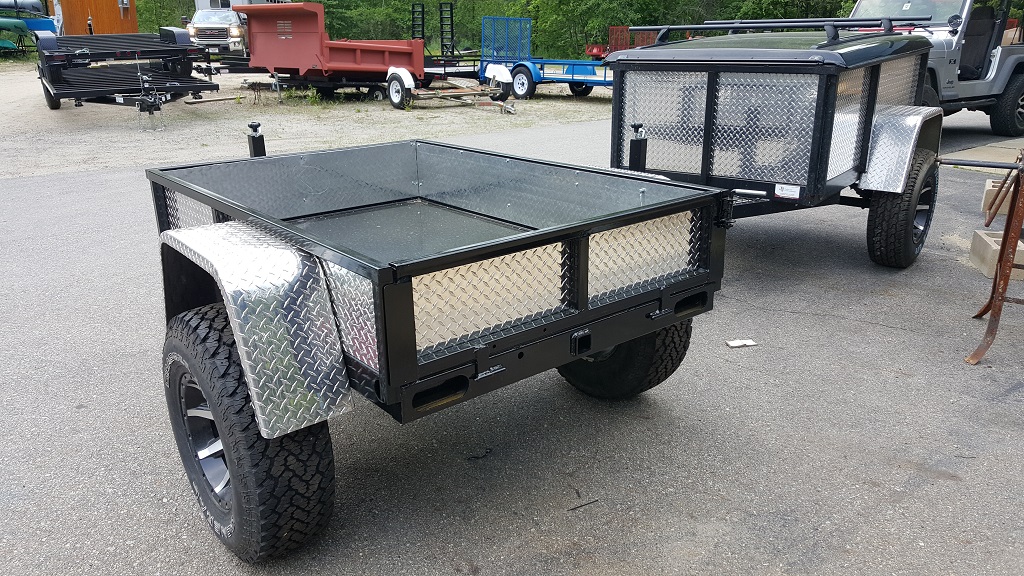

- Base trailer with Wheel Package
- DEXTER Sprung Axles
- E-Z Lube Hubs with Grease Caps
- USA MADE Grommet Mounted LED Recessed Lights W/Lifetime Warranty
- All Wiring Harness Run in Frame
- 1/8″ Steel Deck w/3/8″ Rubber Mat
- Jack 7,000 lb. Drop Leg
- Flat 4 Front Plug
- Standard black color or color matched to your vehicle.
- Curb Weight: 825 lbs. (base)
- Bed Width: 4’-0″ (48”)
- Bed Height: 26”
- Overall Width: 69”
- Axles (Single): (1) 3,500 lbs. Idler for 2990 GVW, Brake axle for 3500 GVW
- Tires: 31×10.5×15
- Wheels: Alloy 15”-5 lug (5 on 4.5)
| Model Number | Size | GVW |
|---|---|---|
| J3000B6 | 4’x6’ | 2990 LBS, Sprung |
| J3500B6 | 4’x6’ | 3500 LBS, Sprung |
| J3000T6 | 4’x6’ | 3000 LBS, Torsion |
| J3500T6 | 4’x6’ | 3500 LBS, Torsion |
| J3000A6 | 4’x6’ | 3500 LBS, Axlesless |
Options
- Jeraco Aluminum Cap
- Heavy Duty Roof Rack
- Ladder/Kayak Rack
- Roof Top Tent
- Yakima Rails and Crossbars
- Spare tire
