These 6’ 9” wide trailers are available in 14, 16, 18, and 20 foot lengths. With a larger tow capacity of 7000-10,000 GVW, these are very popular with landscapers and business owners who need to tow small tractors and heavy equipment.
-

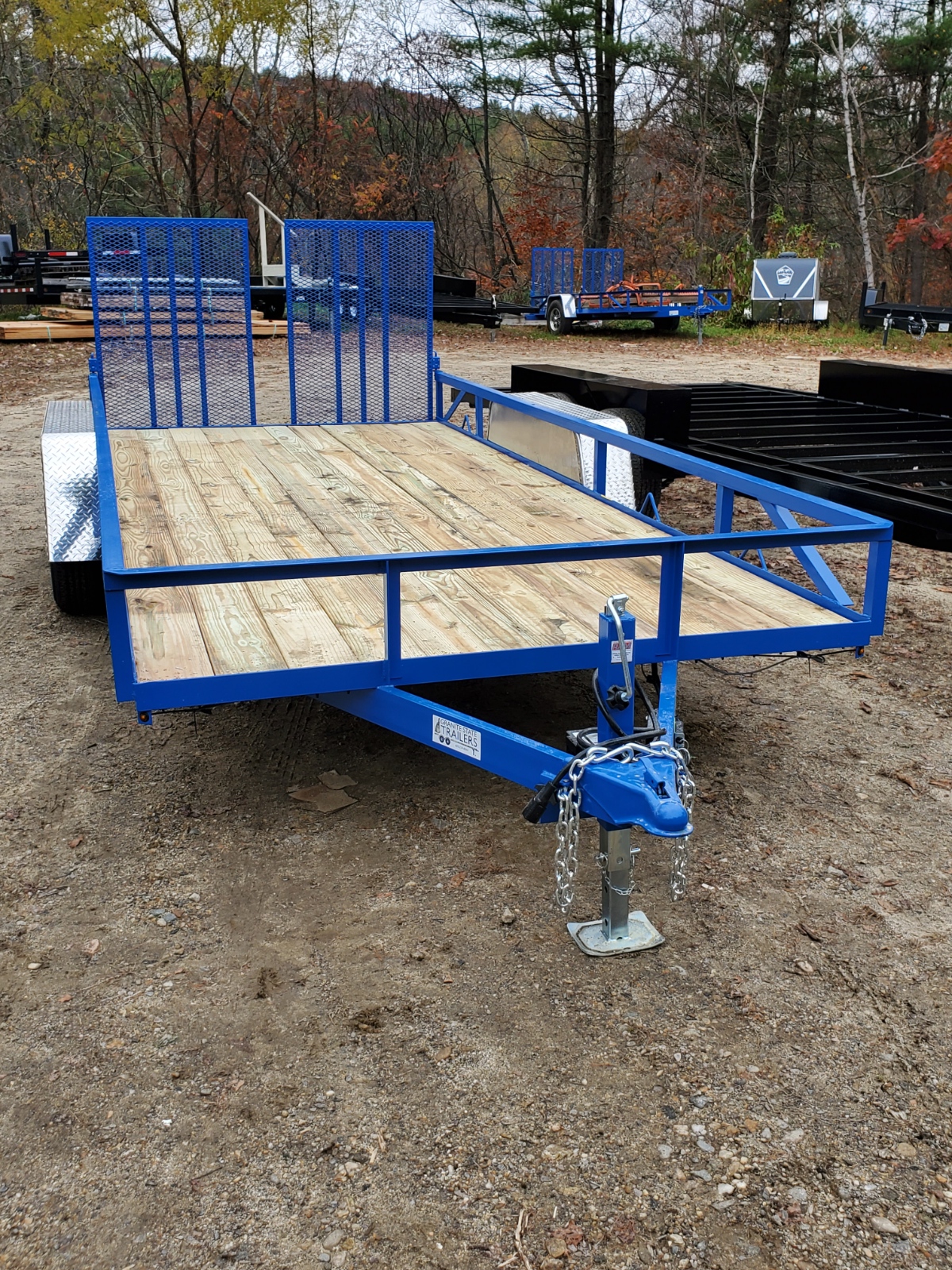

- U7000B16 in Blue, with optional Aluminum Fender
-

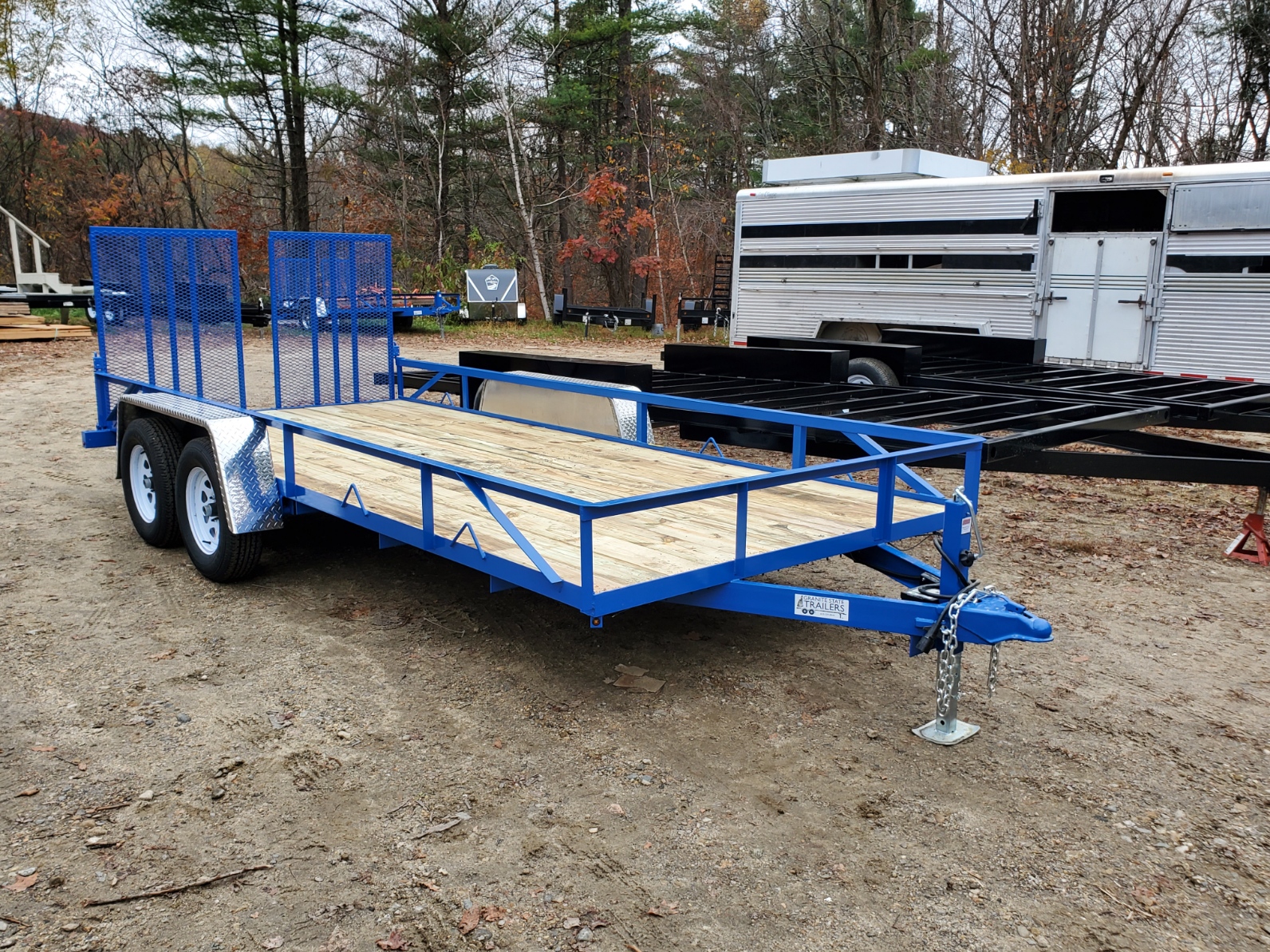

- U7000B16 in Blue, with optional Aluminum Fender
-

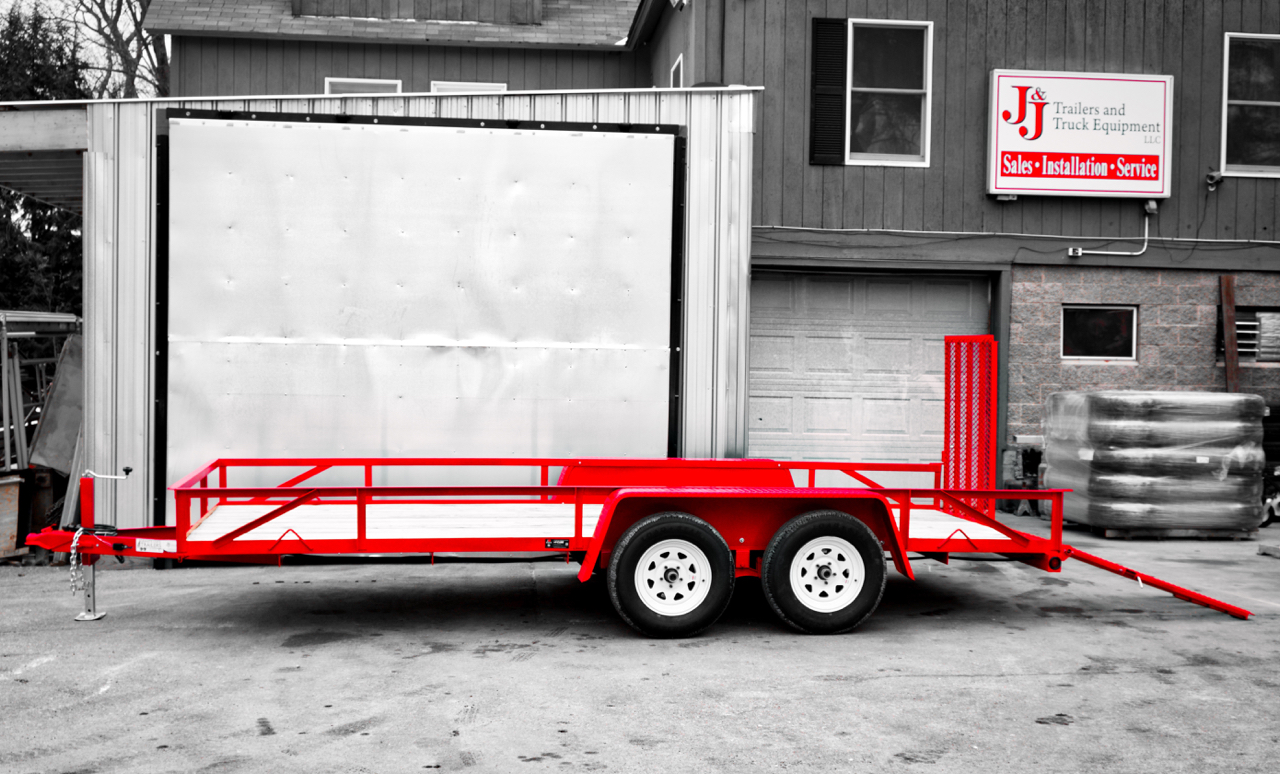

- U7000B16 in Red
-

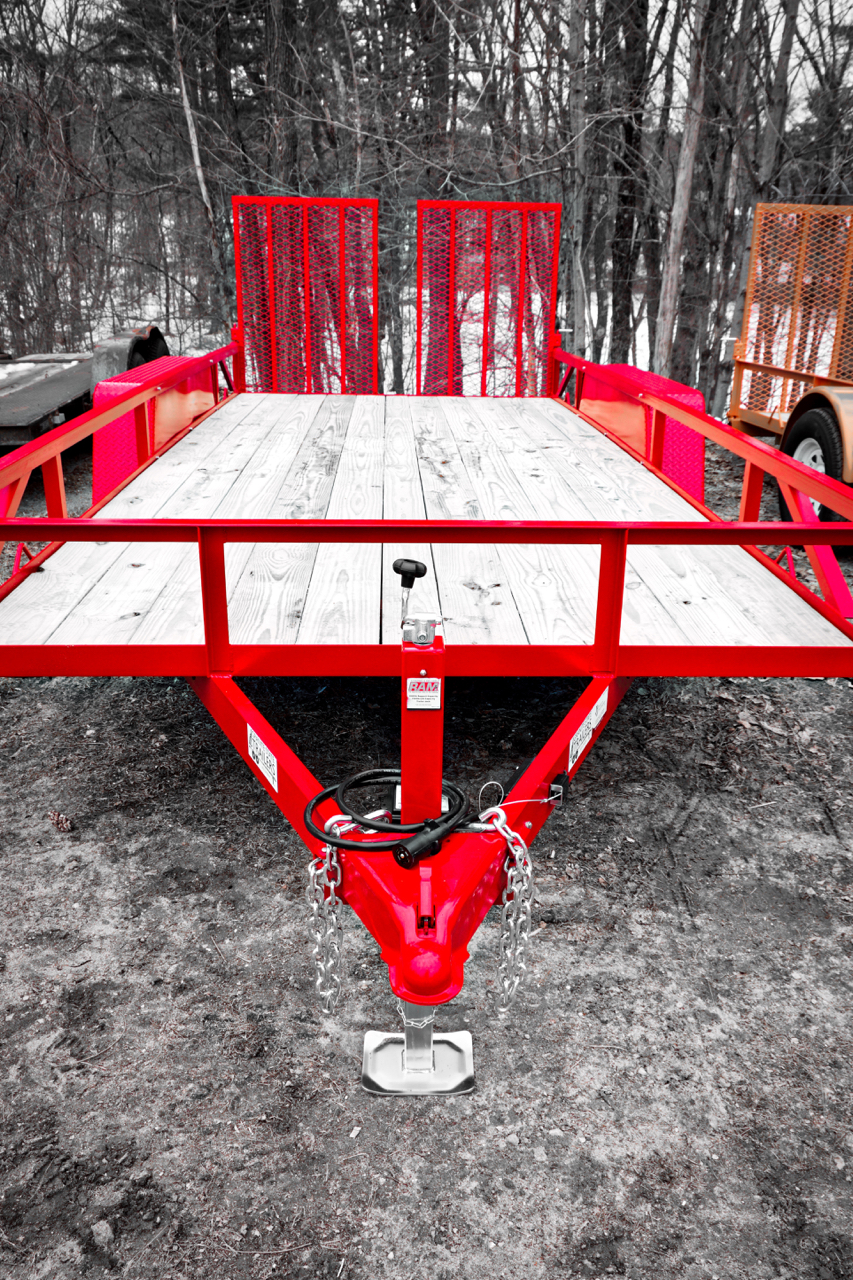

- U7000B16 in Red
-
- Custom U7000B12
- DEXTER Sprung Axles
- E-Z Lube Hubs with Grease Caps
- USA MADE Grommet Mounted LED Recessed Lights W/Lifetime Warranty
- All Wiring Harness Run in Conduit
- “2×8” Pressure Treated Decking

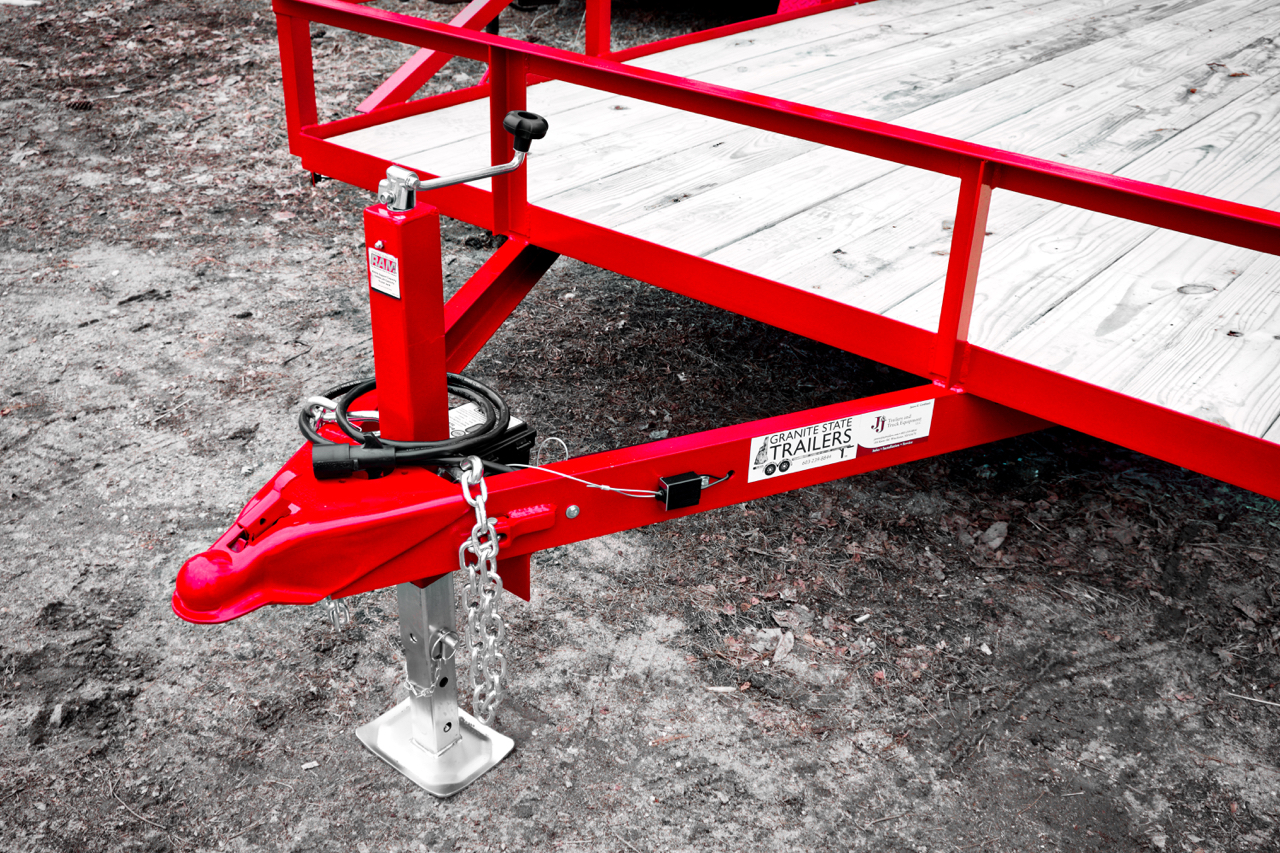

- Jack 7000LB Drop Leg
- 7way RV Front Plug
- 4 Colors to Choose from, Red, Blue, Black, Green. Other colors available
- Curb Weight: 1535 lbs. (U7000B12)
- Bed Width: 6’-9″ (81”)
- Bed Height: 19”
- Overall Width: 8’-5” (101″)
- Axles (Tandem): (2) 3,500 lbs. Brake axle for 7000 GVW, (2)6000Lb Brake for 10,000 GVW
- Tires: ST205/75R15 LR-C
- Wheels: 15”-5 lug (5 on 4.5)
| Model Number | Size | GVW |
|---|---|---|
| U7000B12 | 6’9”x12’ | 7000 LBS |
| U7000B14 | 6’9”x14’ | 7000 LBS |
| U7000B16 | 6’9”x16’ | 7000 LBS |
| U7000B18 | 6’9”x18′ | 7000 LBS |
| U10000B18 | 6’9”x18’ | 10000 LBS |
| U10000B20 | 6’9”x20’ | 10000 LBS |
Options
- 12” Mesh Sides
- 24” High Sides
- 5’ Standard Split Gate
- Spare Tire
- Heavy Duty Gate
- Heavy Duty 5’ Gate
- Extra Tie Downs
- Extra Heavy Duty Gate W/Drop Leg
