This is our 5 foot wide series, available in 8, 10, and 12 foot lengths. This general purpose trailer fits the home owner’s needs with at 2990-3500 GVW capacity.
-

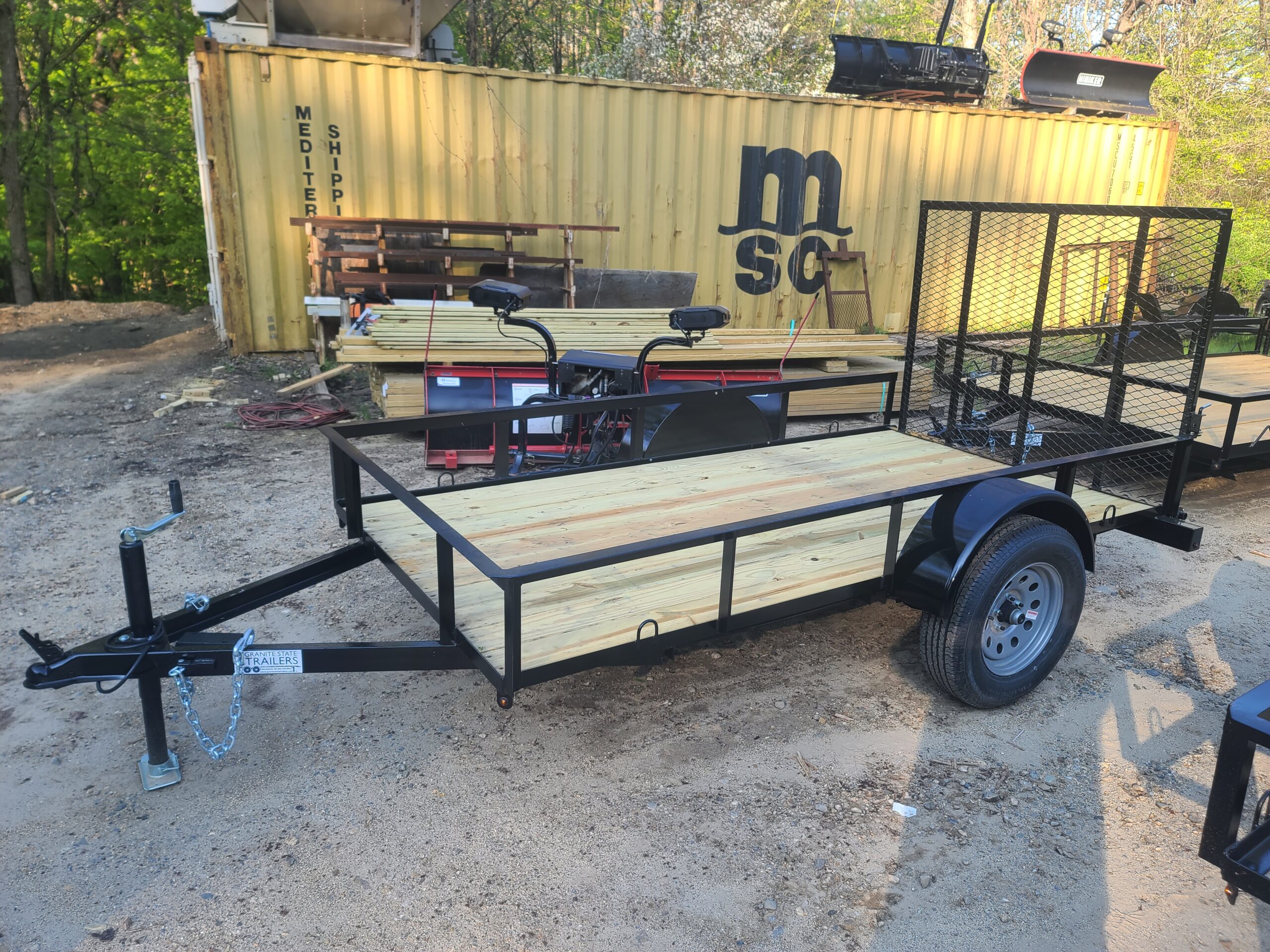

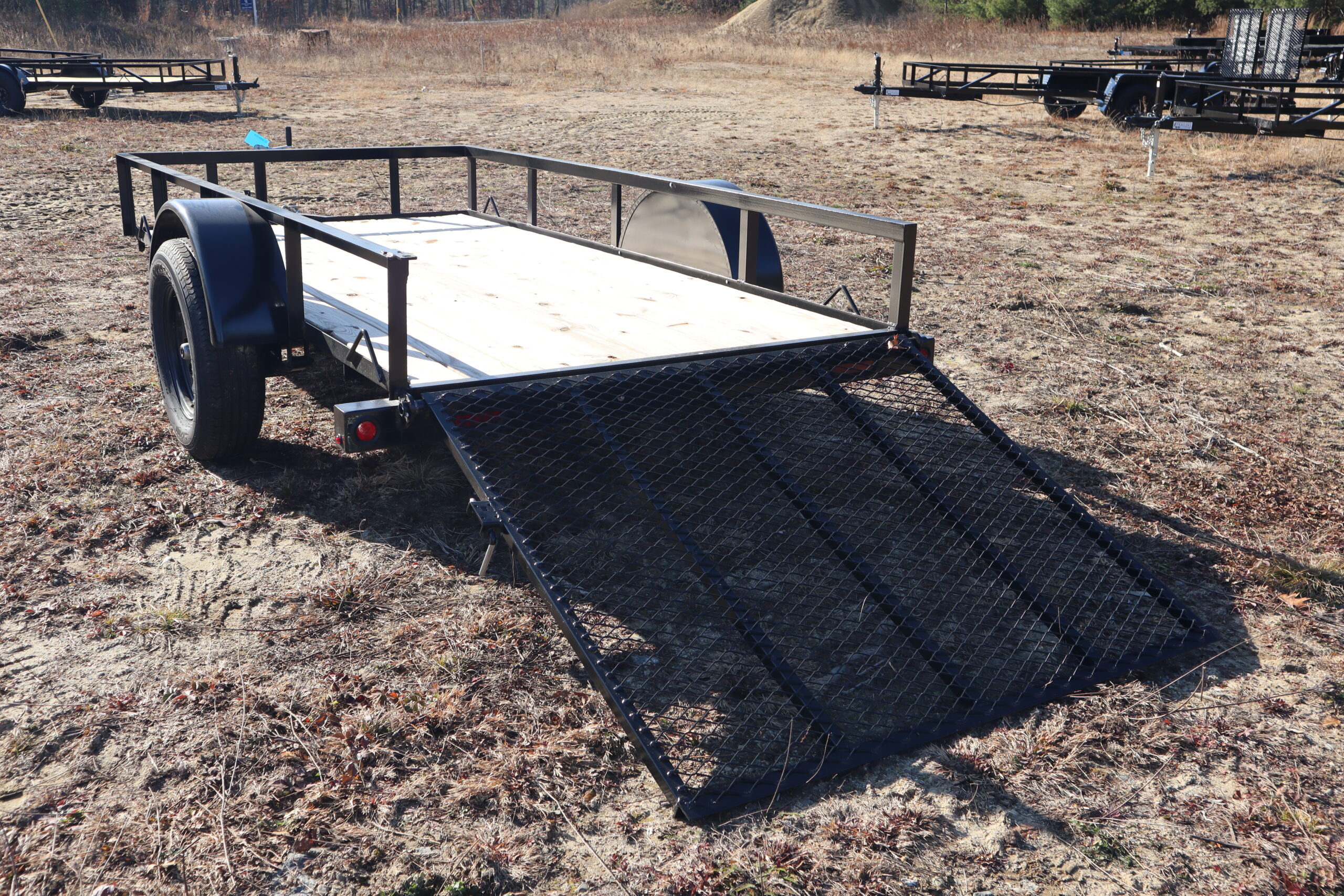

- G3000B10
-

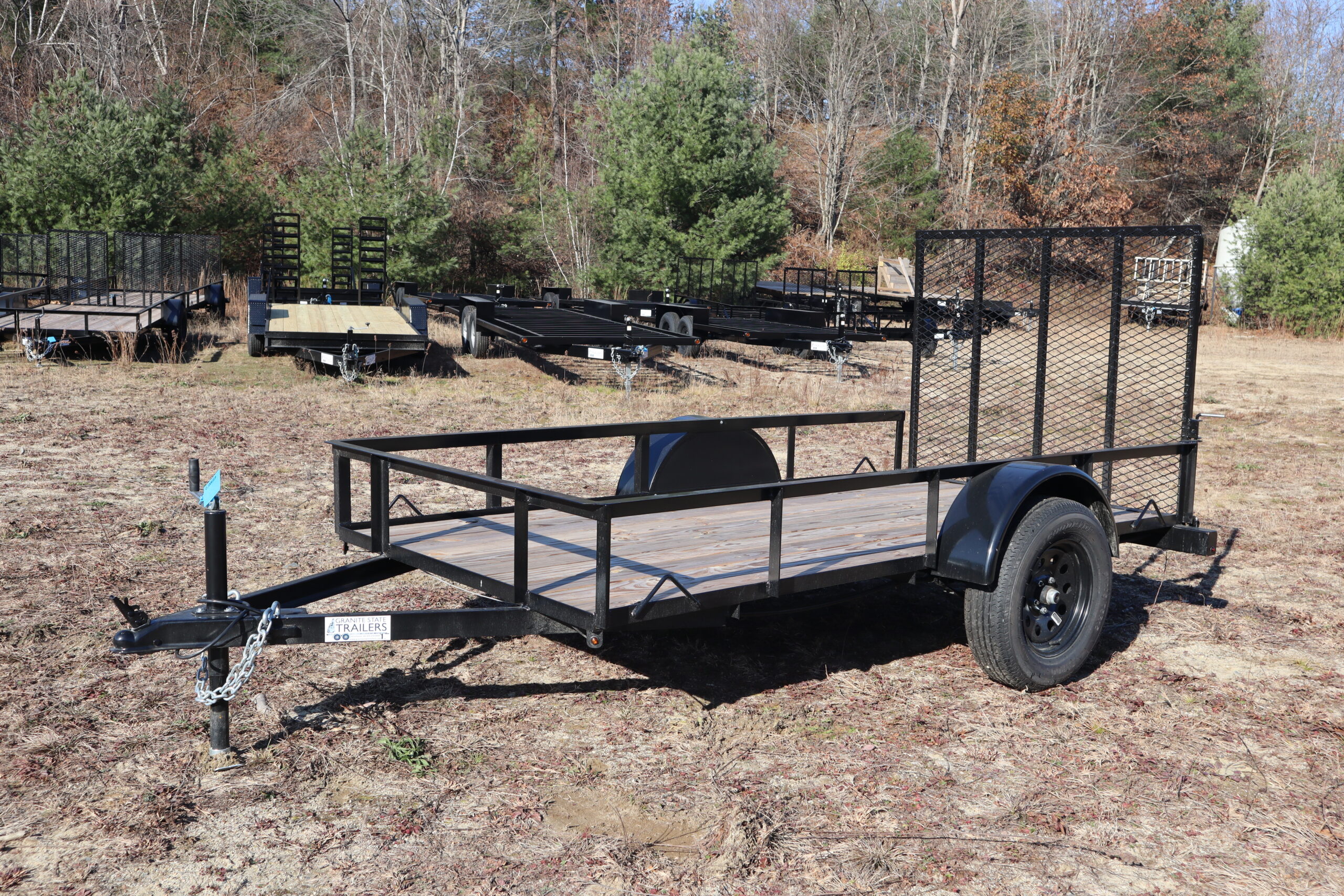

- G3000B10
-

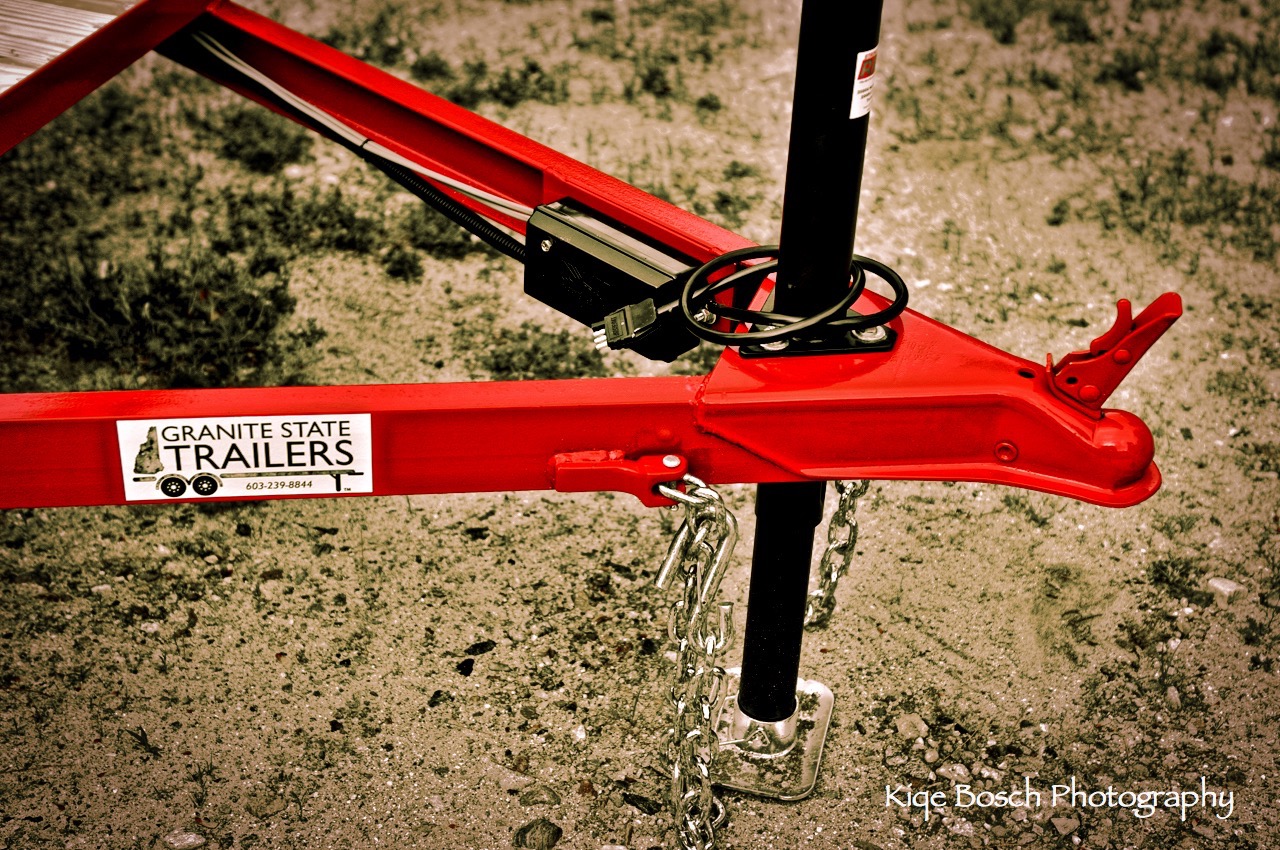

- Molded 4 Flat and Junction Box Standard
-

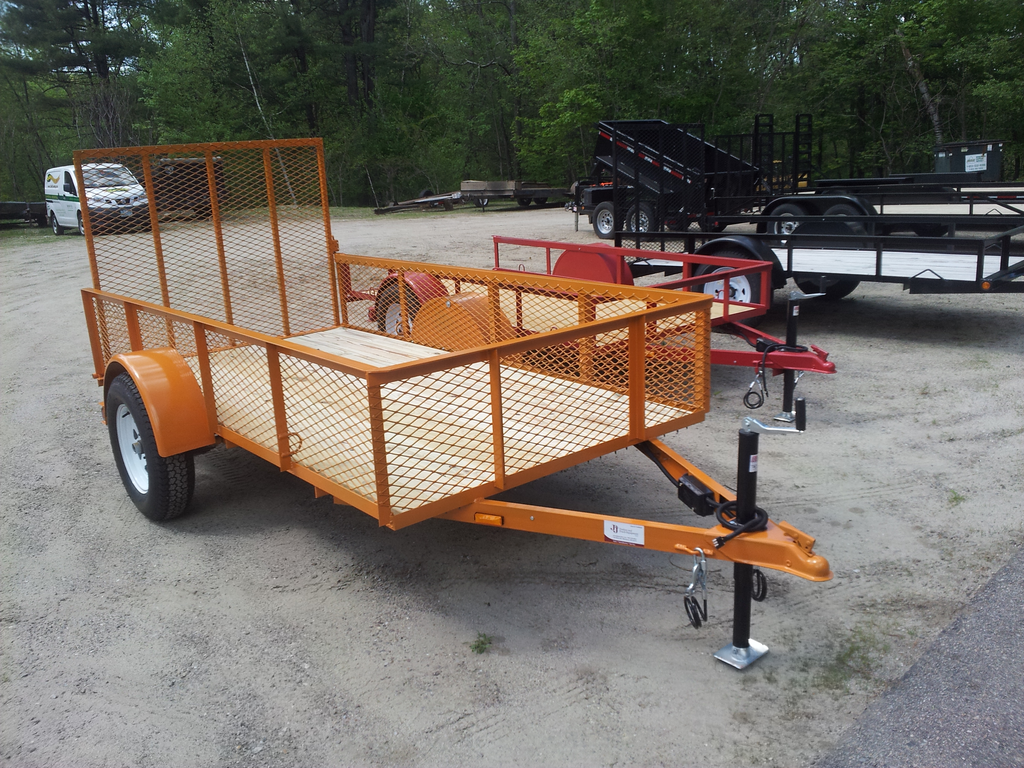

- G3000B10 With 19″ Mesh Sides
-

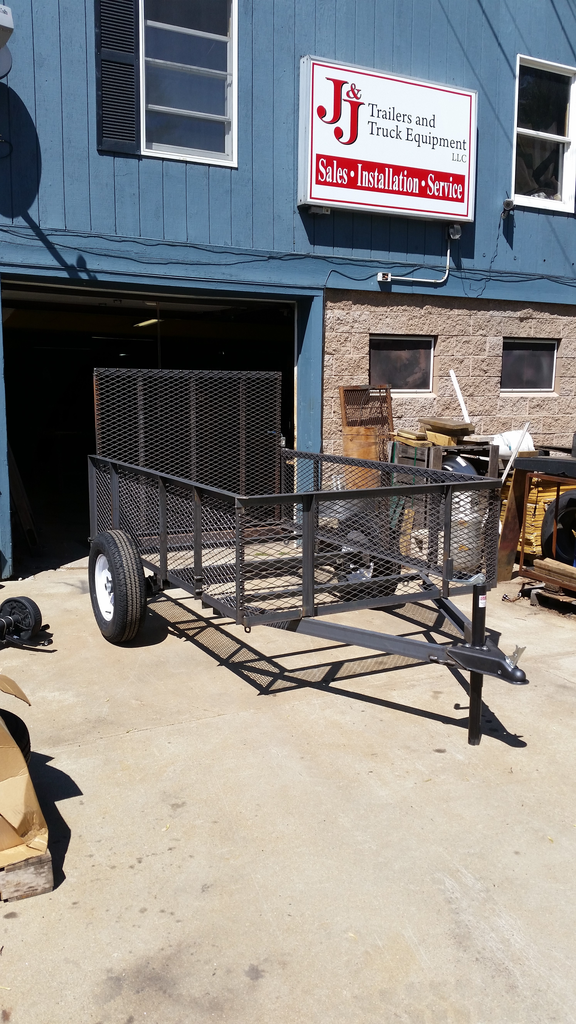

- G3000B8 With 24″ Mesh Sides
-
- Heading to Paint
- DEXTER Sprung Axles
- E-Z Lube Hubs with Grease Caps
- USA MADE Grommet Mounted LED Recessed Lights W/Lifetime Warranty
- All Wiring Harness Run in Conduit
- 5/4″x6″ Pressure Treated Decking
- Jack 2000 lb. A-Frame
- Flat 4 Front Plug
- 4 Colors to Choose from, Red, Blue, Black, Green. Other colors available
- Curb Weight: 745 lbs. (G3000B10)
- Bed Width: 5’-0″ (60”)
- Bed Height: 19”
- Overall Width: 6’-6”
- Axles (Single): (1) 3,500 lbs. Idler for 2990 GVW, Brake axle for 3500 GVW
- Tires: ST205/75R15 LR-C
- Wheels: White Spoke 15”-5 lug (5 on 4.5)
| Model Number | Size | GVW |
|---|---|---|
| G3000B8 | 5’x8’ | 2990 LBS |
| G3000B10 | 5’x10’ | 2990 LBS |
| G3500B10 | 5’x10’ | 3500 LBS |
| G3000B12 | 5’x12’ | 2990 LBS |
| G3500B12 | 5’x12’ | 3500 LBS |
Options
- Mesh Sides
- 24” High Sides
- Spare tire mount
- Spare tire
- Extra Tie Downs
